ANCILLARY EQUIPMENT

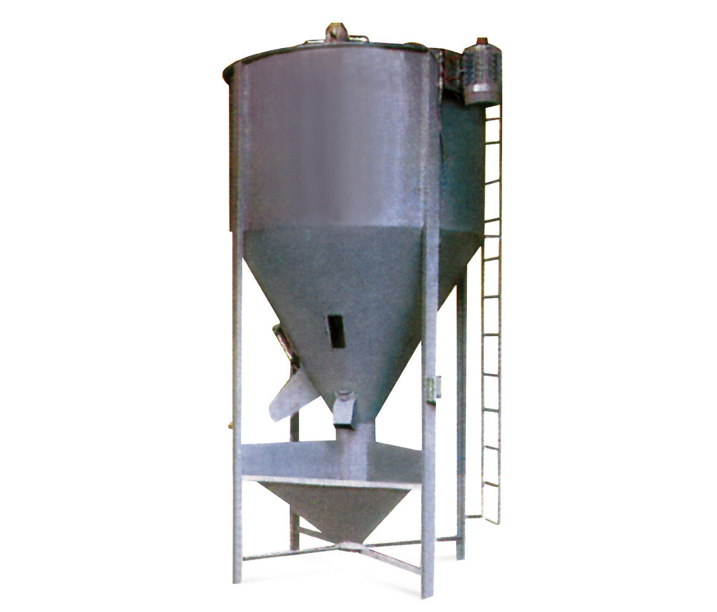

Vertical Storage Barrel

APPLICATION
The complete set is very suitable for the hi-speed blending of plastic powder and pellets for making plastic floor tiles, wall tiles wire, cable, FRP doors & windows and Christmas trees.
SPECIFICATION
Model Tank Vol. Power Loading Weight Machine Dimensions
CW-B1 1000L 3HP 400-500kg 980 x 980 x 3020 mm
CW-B2 2000L 5HP 750-1000kg 1360 x 1360 x 3100 mm
CW-B3 3000L 7.5HP 1000-1500kg 1500 x 1500 x 3250 mm
CW-B4 4000L 10HP 1500-2000kg 1800 x 1800 x 3350 mm
CW-B5 6000L 15HP 2500-3000kg 2000 x 2000 x 4000 mm
CW-B6 10000L 20HP 4500-5000kg 2500 x 2500 x 6160 mm
CW-B7 20000L 30HP 9000-10000kg 3030 x 3360 x 6470 mm
*Above sizes are for reference only.
