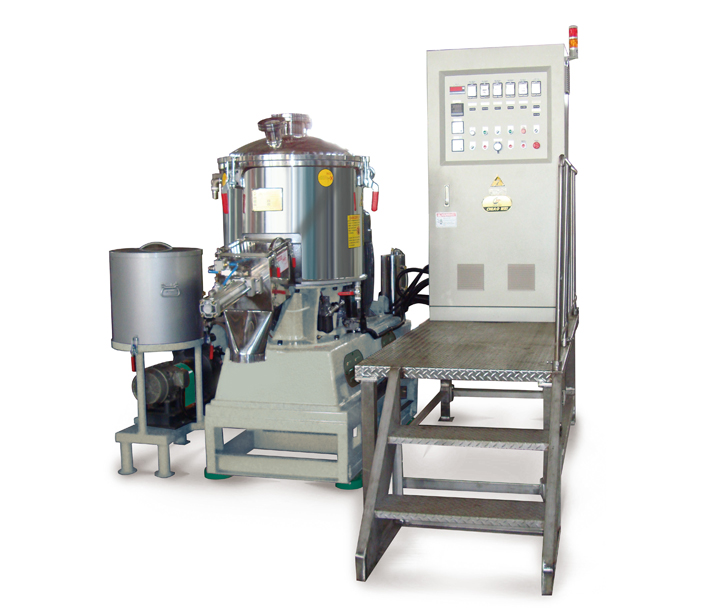

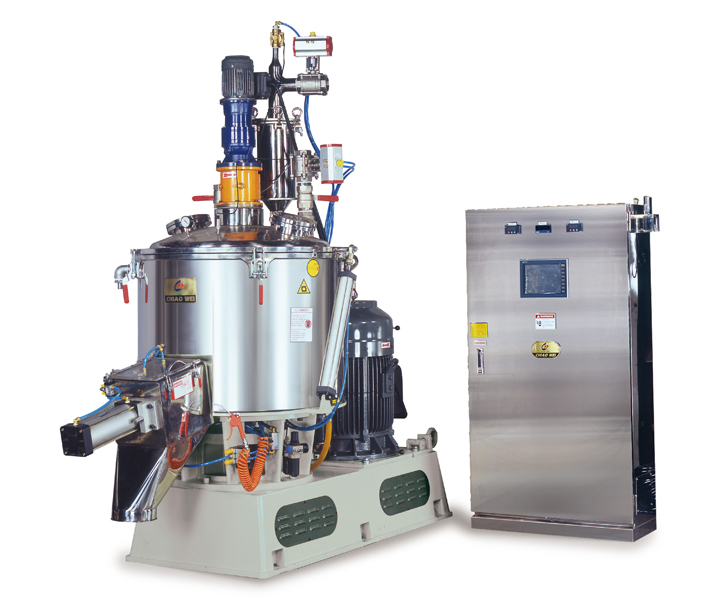

HI-SPEED MIXER / VERTICAL COOLING BLENDER

Hi-Speed Mixer Series (Vacuum Drying Equipment)

APPLICATION
The complete set is very suitable for the hi-speed blending of plastic powder and pellets for making plastic floor tiles, wall tiles wire, cable, FRP doors & windows and Christmas trees.
SPECIFICATION
Model Tank Vol. Power Machine Size
CW-100 100L 30-40HP 2210 x 700 x 1510 mm
CW-150 150L 40-60HP 2240 x 760 x 1790 mm
CW-200 200L 75-100HP 2805 x 920 x 2050 mm
CW-300 300L 100-125HP 2860 x 960 x 2130 mm
CW-400 400L 125-150HP 2910 x 960 x 2190 mm
CW-500 500L 150-175HP 2950 x 1100 x 2230 mm
CW-750 750L 175-200HP 3450 x 1250 x 2520 mm
CW-1000 1000L 250HP 3600 x 1350 x 2700 mm
CW-1200 1200L 300HP 3750 x 1450 x 2900 mm
*Above sizes are for reference only.
